Closed Conduit
Closed Conduit
Couldn't load pickup availability
Conduit

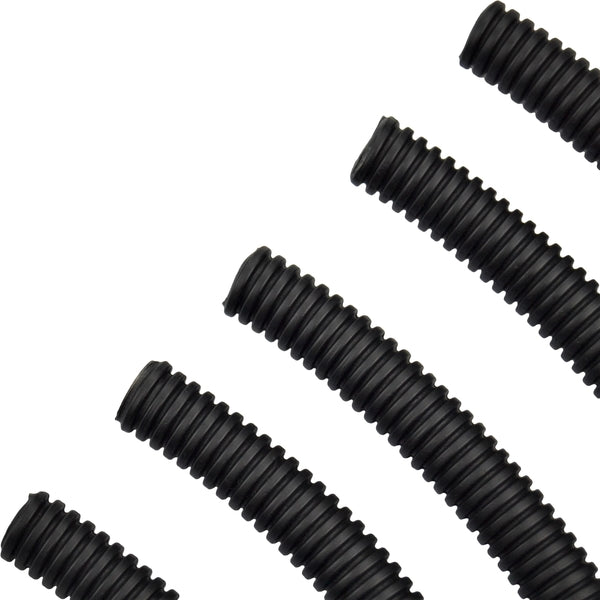

Our corrugated conduit is flexible and flame retardant. It has excellent electrical and physical properties, including excellent acid fastness and corrosion resistance.
Colours Available: Black
Material | Polypropylene |
---|---|
Working Temp | -40ºC to +135ºC |
Flame Retardant | Yes |
ROHS Compliant | Yes |
Closed Conduit is ideal for creating wire harnesses and protecting/ managing cables in a wide array of applications. It protects cables from liquids, dust and dirt. It is very easy to install.
Corrugated strong nylon construction resists crushing and abrasion for reliable protection. The maximum operating temperature is 135°C.
This classic corrugated conduit is one of the most versatile and reliable wire management solutions available. This tubing can be used in the automotive garage, office place, manufacturing facilities and anywhere else cables need protection and management.
Part Number | ID | OD | Thickness | Reel Size |
---|---|---|---|---|
CCC6.5BLACK | 6.5mm | 9mm | 0.25mm | 10 or 50M |
CCC9.0BLACK | 9.0mm | 13mm | 0.25mm | 10 or 50M |
CCC11BLACK | 11mm | 15mm | 0.25mm | 10 or 50M |
CCC13BLACK | 13mm | 17mm | 0.27mm | 10 or 50M |
CCC16BLACK | 16mm | 20mm | 0.27mm | 10 or 50M |
CCC19BLACK | 19mm | 23mm | 0.27mm | 10 or 50M |
CCC25BLACK | 25mm | 29mm | 0.27mm | 10 or 25M |
