Shrinkable Braided Sleeve - Heat Shrink

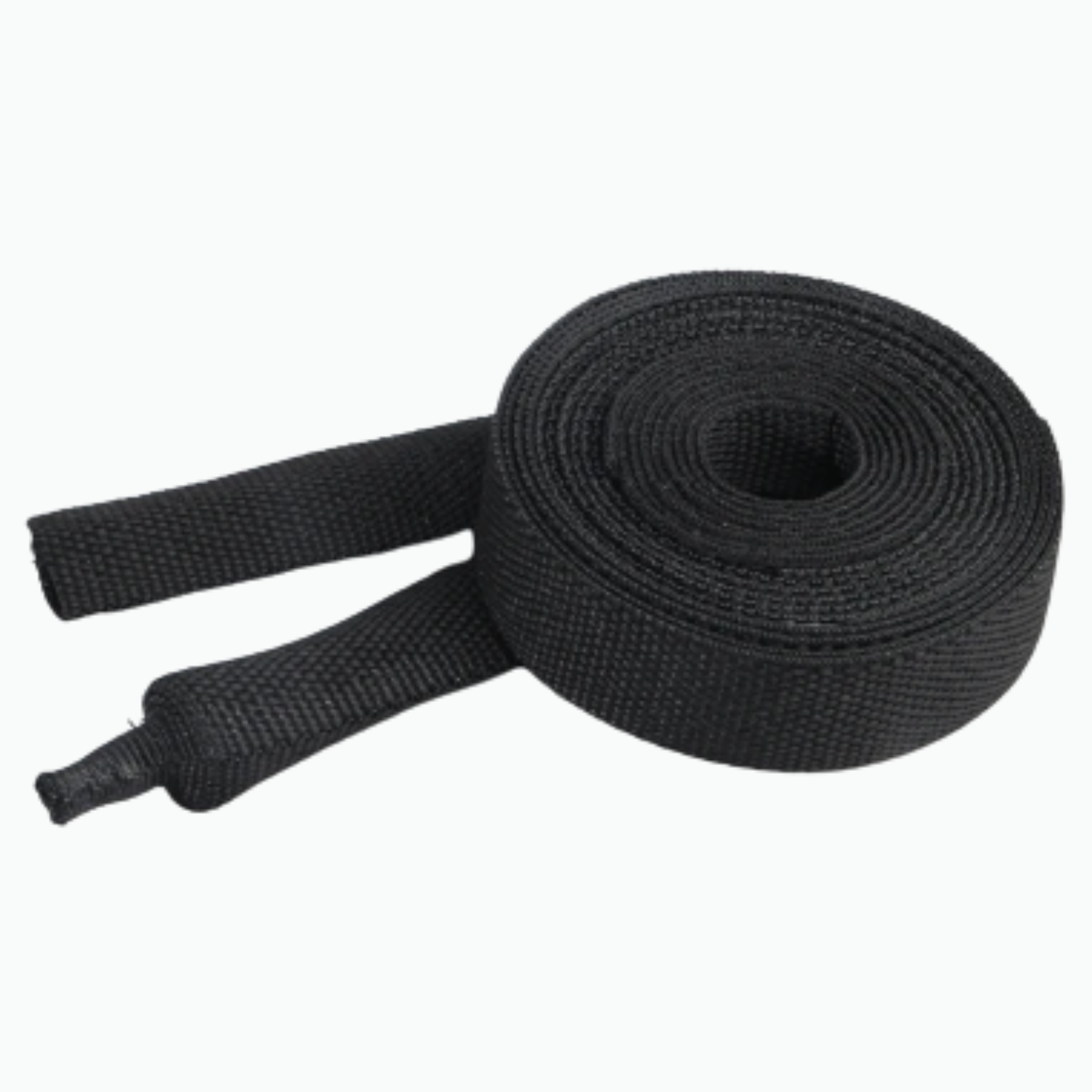

Continuous length.

Sizing guide - Pre-Shrunk - Inside Diameter size

2:1 heat-shrink fabric sleeving that combines a woven polyester multifilament with a modified polyolefin filament.

The woven yet heat-shrinkable design makes it easy to install, ideal for awkward rubber hoses and wire harnesses with irregular shapes and tight bends. A faster installation saves you time and money.

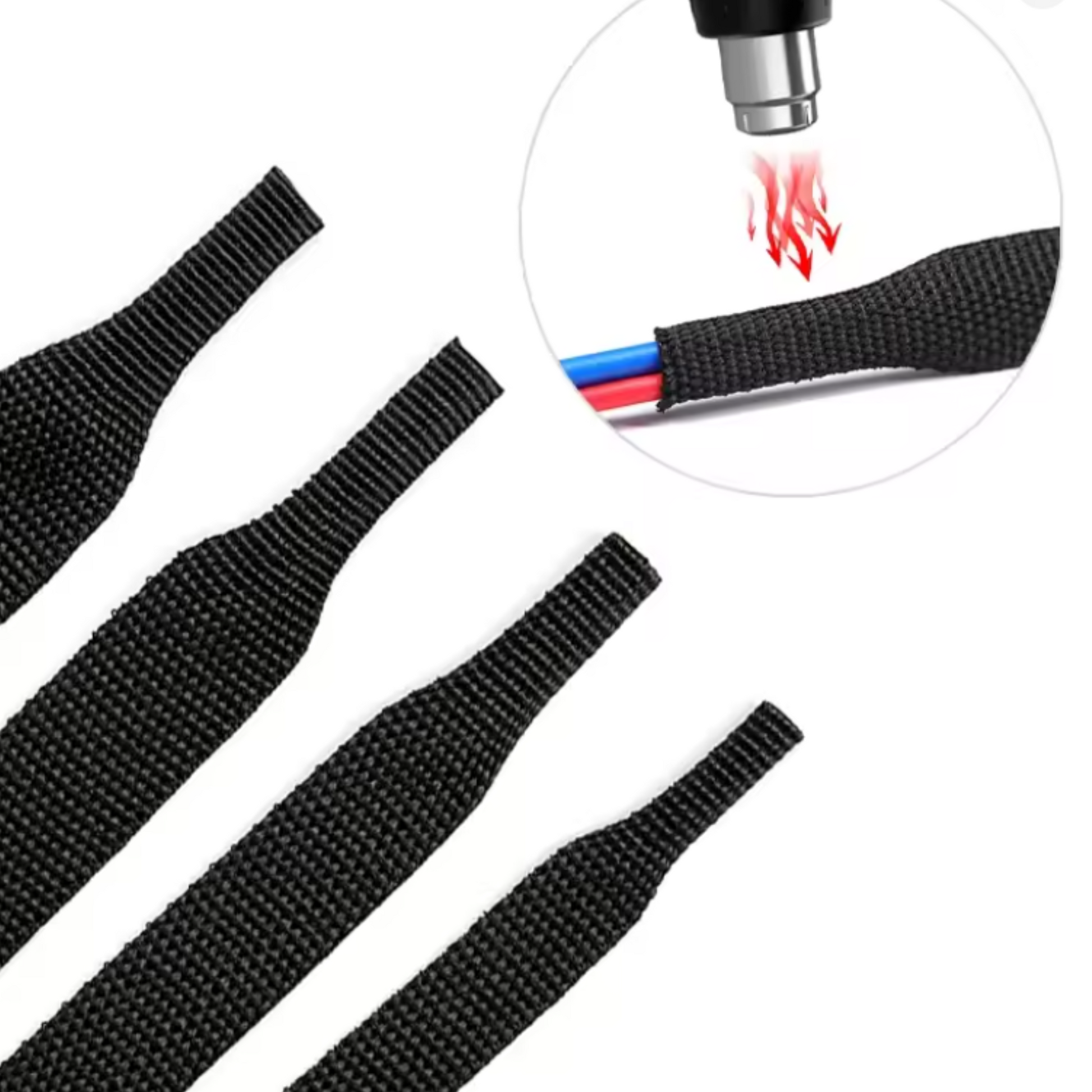

Standard (non-shrink) braided sleeving needs to be fixed in place, often with Cable ties, which in turn can cause abrasion issues. Instead, when in place, Shrink fabric sleeving is shrunk to conform to its substrate either with a standard heat gun (low volume applications) or in tunnel/static ovens (high volume applications). No extra fixing and no abrasion.

Some polyolefin braided sleeving can also raise concerns due to limited thermal performance above 80c, particularly in engine bay hotspots. Higher thermal rating, 3,000 hours at the 150c maximum operating temperature. Additionally,

 zero halogen (less smoke/outgassing) which again makes it ideal for use in environments such as engine bays.

2:1 - Modified radiation cross-linked polyolefin, The specially designed halogen free formulation make's the tubing very flexible and shrink at lower temperature's.

• Shrink Ratio: 50%
• Polyolefin Monofilament & Polyester Fibre
• Zero Halogen
• Flame Retardant
• UL Approved
• ROHS Compliant
• Working Temperature: -55°C to +150°C
• Start Shrink Temperature: 80°C
• Complete Shrink Temperature: 120°C
• Flexible
