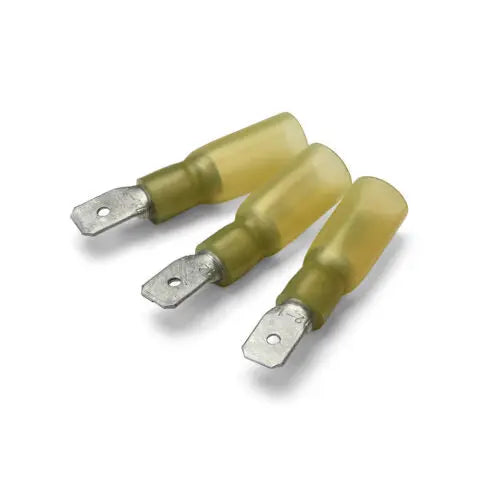

Yellow Heat shrink Male Push-On Terminal

Yellow Heat shrink Male Push-On Terminal

Price per 1 terminal

Materials

- Conductor: Brass

- Sleeve: Copper tubular

- Insulation: Polyethylene

- Plating: Tin

• Lined with hot melt adhesive

• Yellow / Wire Size: 4mm² - 6mm²
• 6.3 x 0.8mm
• Shrinkable temperature: +125°C to 180°C
• Operating temperature: -45°C to +125°C
• Voltage rating: 600V max.
• Low insertion force and easy crimping whilst ensuring secure termination

Product Features and Benefits

The Yellow Heat shrink Male Push-On Terminal is designed to offer a secure and reliable connection for electrical wiring. Its heat shrink tubing provides excellent insulation and protection from moisture, corrosion, and mechanical abrasion. This terminal is ideal for applications requiring high durability and resistance to harsh environments. The yellow color coding helps in easy identification, ensuring accurate and safe wiring. Its push-on design allows for quick and efficient installation, saving time and reducing the risk of loose connections in electrical circuits.

Material and Construction Quality

Manufactured with high-quality copper for superior conductivity, the Yellow Heat shrink Male Push-On Terminal ensures minimal resistance and optimal electrical performance. The surrounding heat shrink sleeve is made from polyolefin, which shrinks tightly around the wire and terminal when heated. This creates a water-resistant seal that increases longevity and reliability of the connection. The robust construction is suitable for both automotive and industrial applications, providing consistent performance even under vibration or harsh conditions.

Applications and Usage Guidelines

This Yellow Heat shrink Male Push-On Terminal is widely used in automotive wiring harnesses, household appliances, and industrial control systems. Its color coding aligns with standard wire gauge sizes, typically for 12-10 AWG cables, making it perfect for medium gauge wire connections. To use, simply insert the wire, crimp the terminal, position the heat shrink tubing over the connection, and apply heat until the tubing tightly conforms. This ensures a secure, insulated, and long-lasting termination suitable for various electrical tasks.
