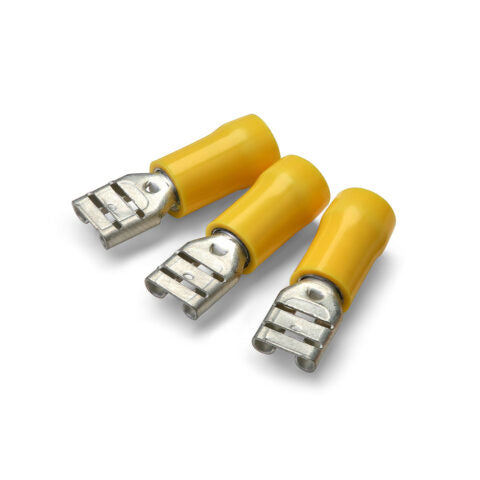

Yellow Female Spade Terminals - Part-Insulated

Yellow Female Spade Terminals - Part-Insulated

• Price: Each
• Terminals consists of the following materials: brass, tin, vinyl & copper
• Wire Size: 4mm² - 6mm²
• Stud Size: 6.3mm x 0.8mm
• Operating temperature: -10°C to +75°C
• Max. voltage rating: 300V
• Minimal force needed on insertion and easy crimping

Overview and Applications

Yellow Female Spade Terminals - Part-Insulated offer a versatile solution for various electrical wiring needs. These terminals are designed to provide a secure and reliable connection between wires and male spade terminals. The part-insulation feature enhances safety by protecting against accidental shorts and mechanical damage while allowing efficient conductivity. Ideal for automotive, industrial, and household wiring applications, their bright yellow color helps with easy identification and organization of wiring systems, ensuring quick installation and maintenance.

Design and Material Specifications

The Yellow Female Spade Terminals - Part-Insulated are crafted from high-quality copper with a tin plating to resist corrosion and enhance conductivity. The partial insulation typically uses durable vinyl or nylon, which protects the crimped wire area while leaving the spade portion exposed to ensure a solid connection. This design balances electrical performance with user safety, making these terminals suitable for medium to high current applications. Their color coding complies with electrical standards for wire gauge sizes, usually suited for 12-10 AWG wires.

Installation and Performance Benefits

Installing Yellow Female Spade Terminals - Part-Insulated is straightforward and efficient. With the insulated sleeve protecting the crimp area, users can achieve a firm grip during crimping, reducing the chance of wire damage or loose connections. These terminals provide excellent vibration resistance, making them ideal for automotive or machinery use where movement might occur. Additionally, the partial insulation simplifies troubleshooting and connection verification without removing protective covers, thus improving both safety and workflow efficiency in electrical projects.
