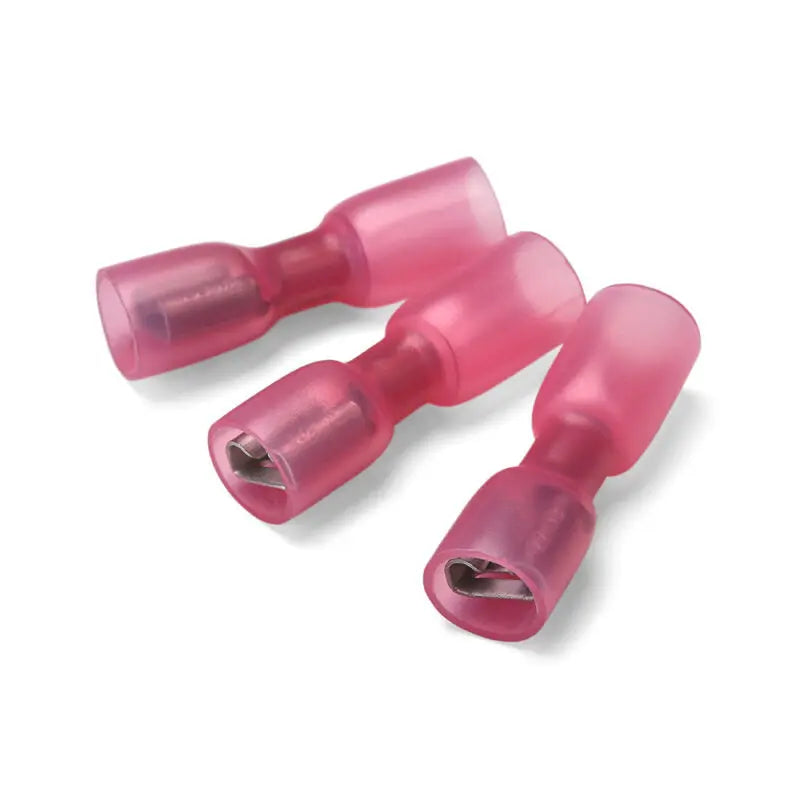

Red Heat Shrink Female Spade Terminals - Fully Insulated

Red Heat Shrink Female Spade Terminals - Fully Insulated

Price per 1 terminal

Materials

- Conductor: Brass

- Sleeve: Copper tubular

- Insulation: Polyethylene

- Plating: Tin

• Lined with hot melt adhesive
• Wire Size: 0.5mm² - 1.5mm²
• Fully Insulated

• 6.3 x 0.8mm
• Shrinkable temperature: +125°C to 180°C
• Operating temperature: -45°C to +125°C
• Voltage rating: 600V max.
• Low insertion force and easy crimping whilst ensuring secure termination

Overview and Key Features

Red Heat Shrink Female Spade Terminals - Fully Insulated offer an ideal solution for reliable and safe electrical connections. These terminals are designed with a fully insulated red heat shrink tubing that shrinks securely around the wire and terminal. This protective layer prevents accidental shorts and enhances durability in harsh environments. Their female spade design allows easy and secure mating with male terminals, making them widely used in automotive, marine, and industrial wiring applications. Crafted from high-quality copper, these connectors ensure excellent electrical conductivity and corrosion resistance, providing a long-lasting connection in critical systems.

Benefits of Fully Insulated Heat Shrink Design

The fully insulated red heat shrink design on these female spade terminals provides superior protection against moisture, dust, and mechanical strain. When heated, the tubing contracts tightly, creating a waterproof seal that safeguards the connection with enhanced resistance to abrasion and vibration. This insulation helps maintain stable electrical contact, reducing the risk of short circuits and signal loss. Additionally, the bright red color serves as a visual indicator for wire gauge and polarity, facilitating easy identification during installation or maintenance tasks in complex wiring systems.

Application and Installation Tips

Red Heat Shrink Female Spade Terminals - Fully Insulated are highly versatile and easy to install. To install, strip the wire to the recommended length, insert it fully into the barrel of the terminal, and crimp firmly using a high-quality crimping tool. After crimping, apply heat evenly with a heat gun to shrink the tubing for a tight, secure seal. These terminals are perfect for automotive wiring harnesses, household electrical repairs, and industrial control panels where dependable, insulated connections are crucial. Following proper installation techniques ensures optimal performance and longevity of the electrical system.
