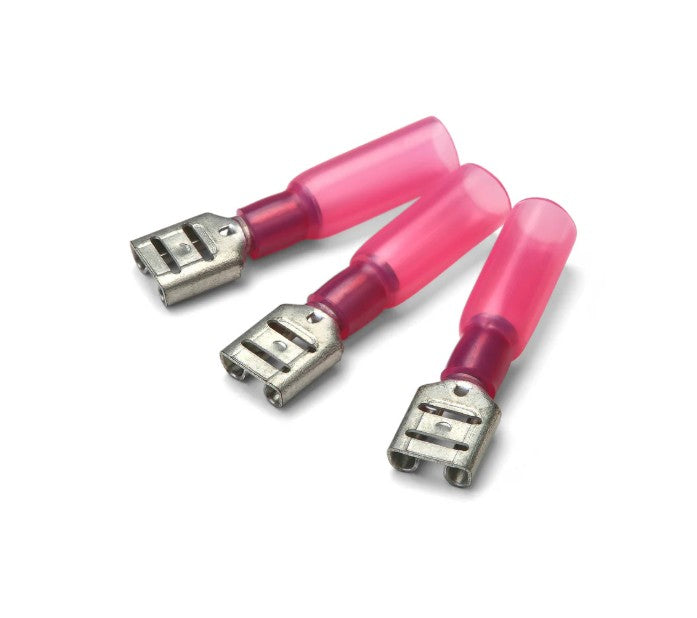

Red Heat Shrink Female Spade Terminals

Red Heat Shrink Female Spade Terminals

Price per 1 terminal

Materials

- Conductor: Brass

- Sleeve: Copper tubular

- Insulation: Polyethylene

- Plating: Tin

• Lined with hot melt adhesive
• Wire Size: 0.5mm² - 1.5mm²
• Part Insulated

• 6.3 x 0.8mm
• Shrinkable temperature: +125°C to 180°C
• Operating temperature: -45°C to +125°C
• Voltage rating: 600V max.
• Low insertion force and easy crimping whilst ensuring secure termination

What Are Red Heat Shrink Female Spade Terminals?

Red Heat Shrink Female Spade Terminals are insulated electrical connectors designed for reliable wire-to-terminal connections. They feature a female spade end that easily mates with male spade terminals, providing secure electrical contacts. The red color commonly indicates compatibility with wire sizes of 18-22 AWG, making them ideal for various automotive, marine, and industrial wiring projects. The integrated heat shrink tubing adds an extra layer of insulation and protection, shrinking tightly around the wire and terminal once heated for a waterproof and vibration-resistant seal.

Advantages of Heat Shrink Insulation

The heat shrink insulation on these female spade terminals greatly enhances their durability and performance. When heat is applied, the tubing contracts to form a snug fit, which prevents moisture, dust, and corrosion from compromising the connection. This feature is crucial in environments exposed to harsh conditions. Additionally, the insulation helps reduce the risk of short circuits by covering exposed metal surfaces. This combination of mechanical and environmental protection improves long-term reliability in both automotive and industrial applications.

Key Applications and Usage Tips

Red Heat Shrink Female Spade Terminals are widely used in automotive wiring, electrical panels, home appliances, and marine equipment. Their easy-to-crimp design allows for quick, efficient installation with standard tools. For optimal results, ensure the wire gauge matches the terminal size, strip the wire properly, insert it fully into the connector, and then apply heat evenly to the tubing. This ensures a tight, protective seal and a strong electrical connection, making these terminals a preferred choice for both professionals and DIY enthusiasts.
