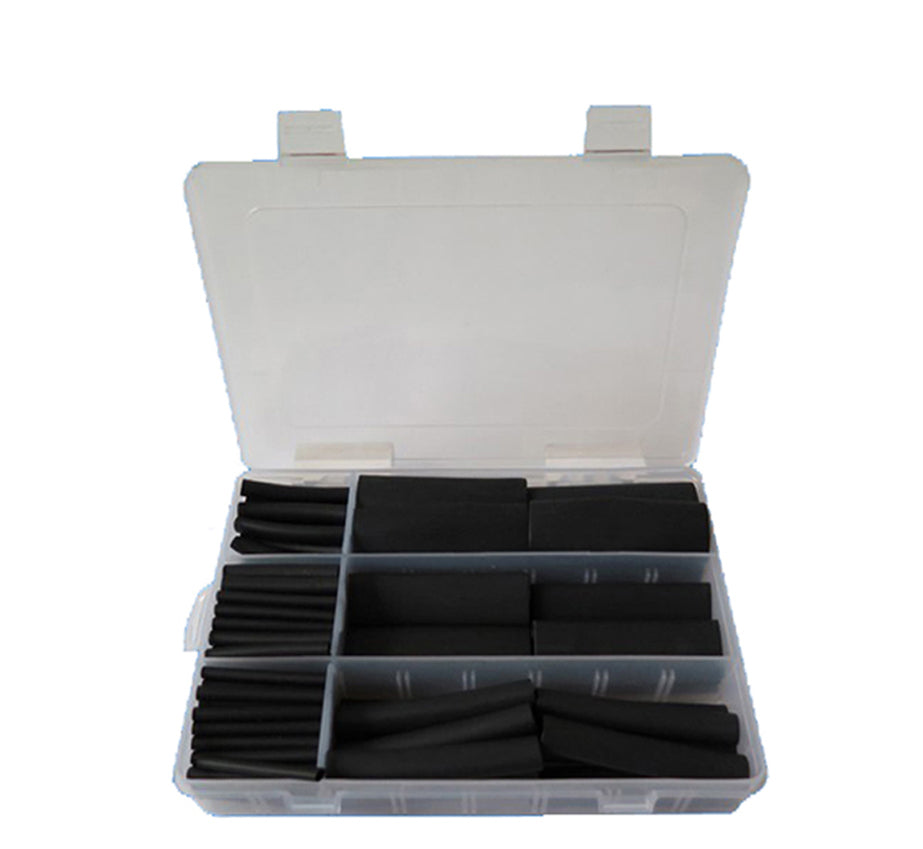

Heatshrink Kit 2:1/3:1/4:1 Mixed 140 pcs

Applications

SHW-1-H series of heat shrink tubing is manufactured with modified radiation cross-linked polyolefin. The specially designed halogen free formulation makes the tubing very flexible and shrink at lower temperature. Suitable for applications where temperature sensitive components protection, e.g. PVC jacketed wire and cable and quick shrinkage is required. It has good mechanical and electrical performances.

SHW-1-SB (3X, 4X) Manufactured by co-extrusion of polyolefin and hot-melt adhesive. Designed to provide both insulation and sealing for protected articles. Used to protect auto wires, shipping cable, bundle wires and metal tubes against water and moisture. High expansion ratio makes it possible to repair most damaged cable jackets without removing connectors.

Specification:

• Operating temperature -45℃ to +125℃ (Dual Wall)
• -55℃to +125℃ (Normal Wall)
• Minimum shrink temperature 70℃(Dual Wall)
• Minimum shrink temperature 70℃(Normal Wall
• Shrink Ratio 2:1/3:1/4:1
• Approvals: UL224, 125  600V VW-1
• RoHS compliant
• Standard colour: black

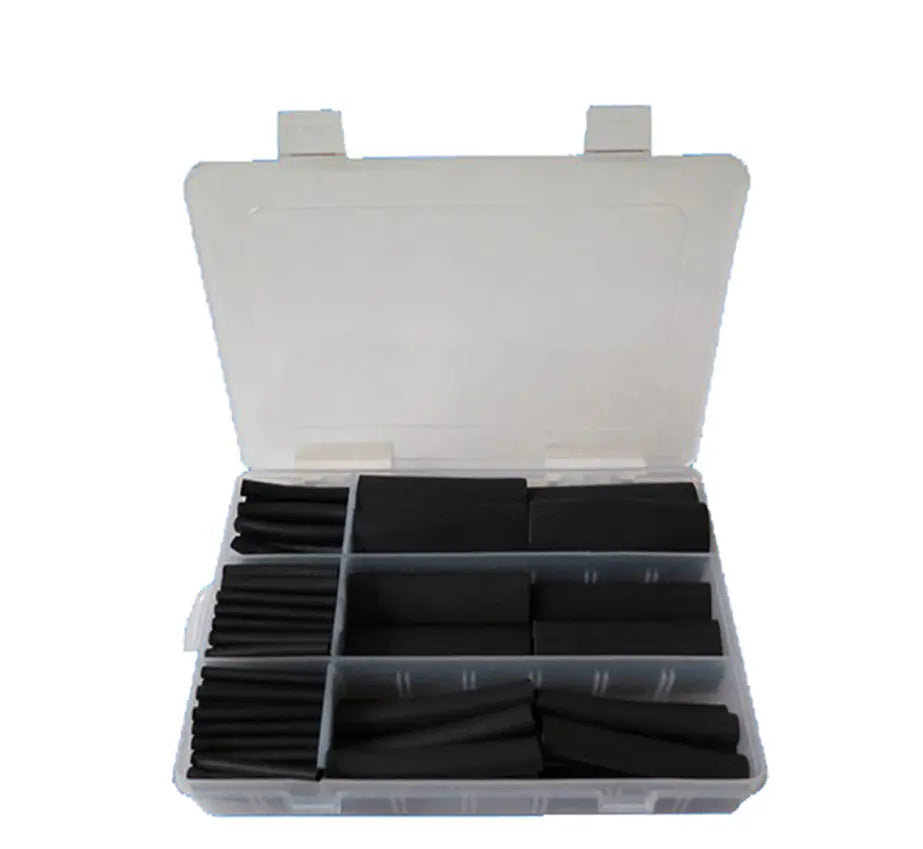

This Kit Contains:

2:1 normal wall, 3.2mm (45mm x 50pcs)? 4.8mm (45mm x 30pcs)? 6.4mm (45mm x 20pcs)
3:1 dual wall, 9.5mm (70mm x 20pcs) 12.7mm (70mm x 10pcs)
4:1 dual wall 16.0mm (70mm x 10 pcs)
