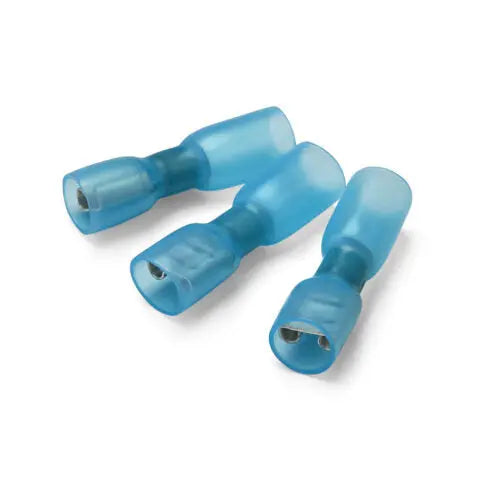

Fully Insulated Blue Heat Shrink Female Spade Terminals

Fully Insulated Blue Heat Shrink Female Spade Terminals for Secure Electrical Connections

Price per 1 terminal

Materials

- Conductor: Brass

- Sleeve: Copper tubular

- Insulation: Polyethylene

- Plating: Tin

• Lined with hot melt adhesive
• Wire Size: 1.5mm² - 2.5mm²
• Fully Insulated

• 6.3 x 0.8mm
• Shrinkable temperature: +125°C to 180°C
• Operating temperature: -45°C to +125°C
• Voltage rating: 600V max.
• Low insertion force and easy crimping whilst ensuring secure termination

Durability and Protection Features

Fully Insulated Blue Heat Shrink Female Spade Terminals provide excellent durability and protection for electrical wiring applications. The blue insulation not only identifies wire gauge compatibility but also adds a protective layer that resists abrasion and corrosion. The heat shrink tubing contracts once heated, creating a tight seal that protects the connection from moisture, dust, and environmental contaminants. This makes the terminals highly reliable for automotive, marine, and industrial wiring projects where long-lasting and weather-resistant connections are crucial.

Easy Installation and Performance

These fully insulated blue heat shrink female spade terminals are designed for quick and easy installation. The female spade end slides effortlessly onto male spade connectors, ensuring a secure and firm fit. The heat shrink feature simplifies the sealing process, allowing users to apply heat using a standard heat gun or lighter to activate the tubing’s shrink properties. This shrinkage strengthens the mechanical connection and provides strain relief, reducing the risk of wire damage or disconnection during vibration or movement.

Applications and Wire Compatibility

Ideal for 16-14 AWG wires, these fully insulated blue heat shrink female spade terminals are versatile connectors suitable for a wide range of electrical projects. The blue insulation indicates wire size compatibility and enhances safety by color-coding wiring systems for easy identification. They are perfect for automotive wiring harnesses, household appliances, renewable energy setups, and marine equipment. Their reliable insulation and waterproofing capabilities make them an essential choice where secure and safe electrical connections are required.
