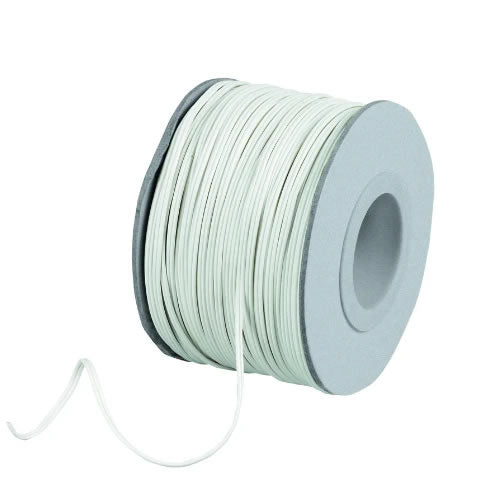

Bell Wire | 50m

Bell Wire White 50m roll

Product Type: Bell Wire

Specification:

• Conductors: 2×0.49CCA (Copper Clad Aluminium)
• Inner conductor: 1/0.49±0.005mm
• Insulation: PVC
• Size: 2.2×4.4±0.2mm
• Wall thickness: Approximately 0.8mm
• Conductor resistance: <=140R/km
• Testing voltage: 50Hz 1Min (wire/wire 50Hz 1Min)=2kv
• Permissible temperature: -15°C to 75°C
• CPR – Cat Eca
• Low current, figure of 8 bell wire with solid conductors.
• The outer sheath is PVC and is supplied on a 50m reel.
