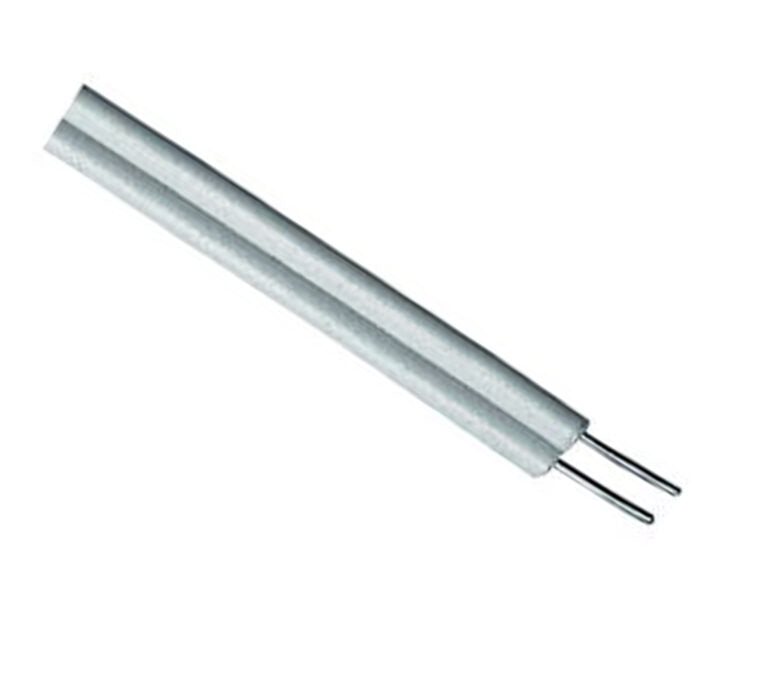

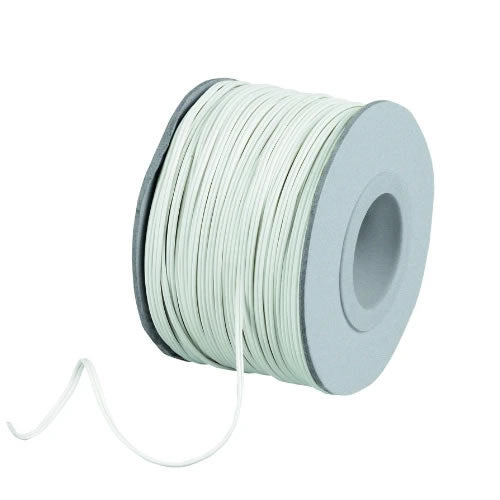

White bell wire for low-current wiring applications, supplied on a 50m reel. This figure of 8 bell wire uses solid conductors and a PVC outer sheath, making it suitable for doorbell and other low-voltage installations where a neat, flexible cable is required.
Specification:
• Conductors: 2×0.49CCA (Copper Clad Aluminium) • Inner conductor: 1/0.49±0.005mm • Insulation: PVC • Size: 2.2×4.4±0.2mm • Wall thickness: Approximately 0.8mm • Conductor resistance: <=140R/km • Testing voltage: 50Hz 1Min (wire/wire 50Hz 1Min)=2kv • Permissible temperature: -15°C to 75°C • CPR – Cat Eca • Low current, figure of 8 bell wire with solid conductors. • The outer sheath is PVC and is supplied on a 50m reel.
