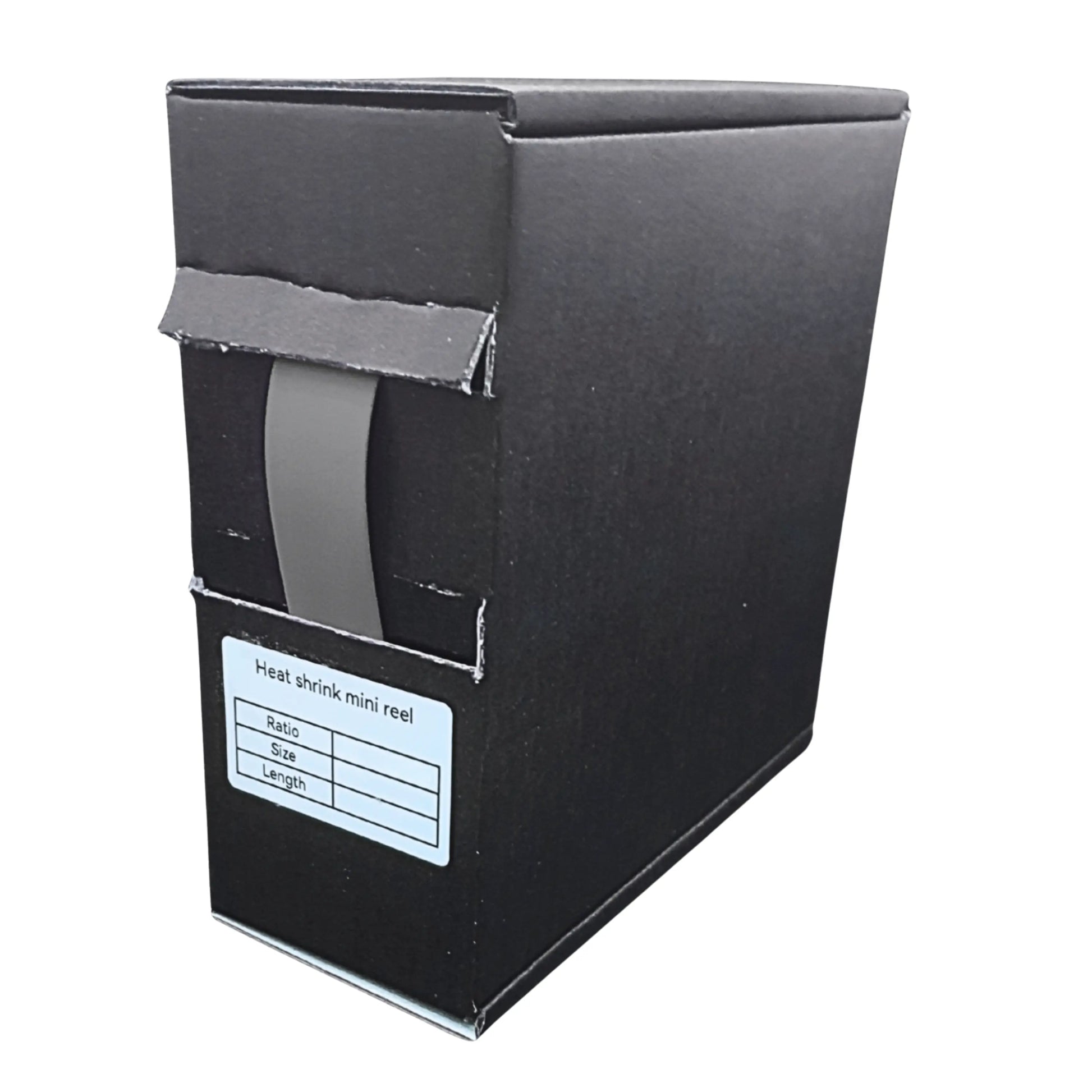

2:1 heat shrink tubing mini reel
2:1 heat shrink tubing mini reel
Couldn't load pickup availability
Explore the Features and Benefits of 2:1 Heat Shrink Tubing Mini Reel
- 2:1 Ratio
- UL Approved - UL 224 VW-1
- Excellent Flexibility and Insulation
- Superior Flame Retardant Properties

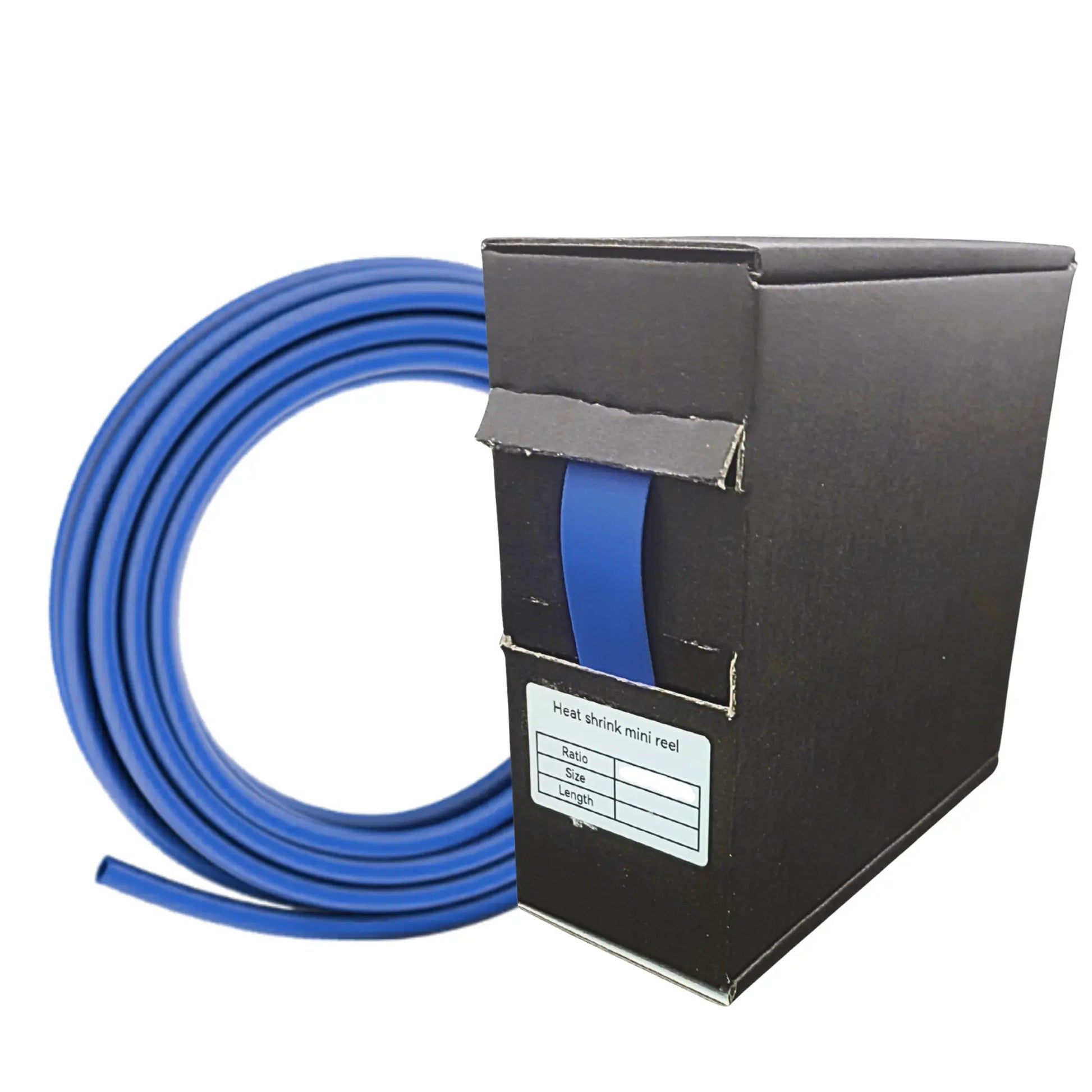

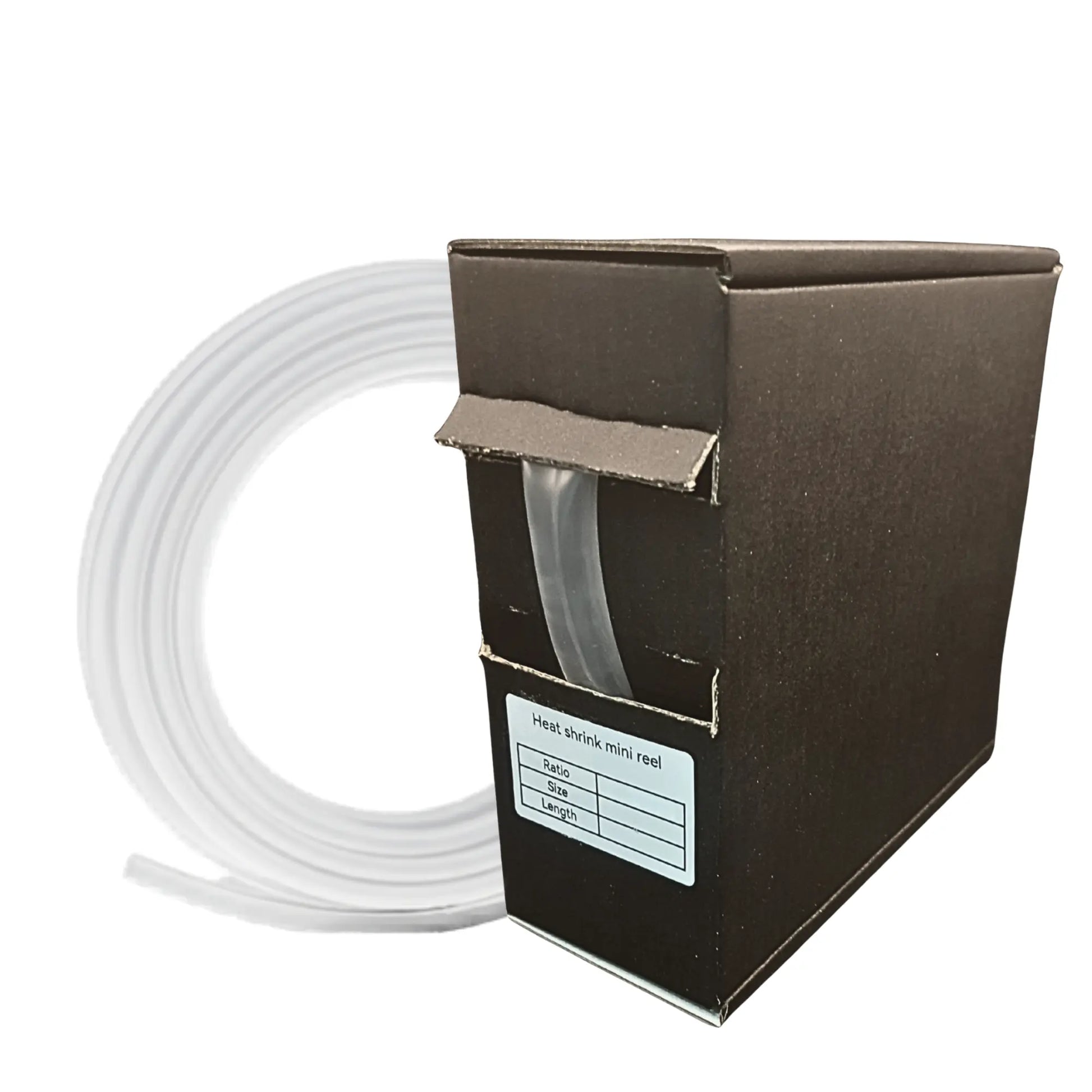

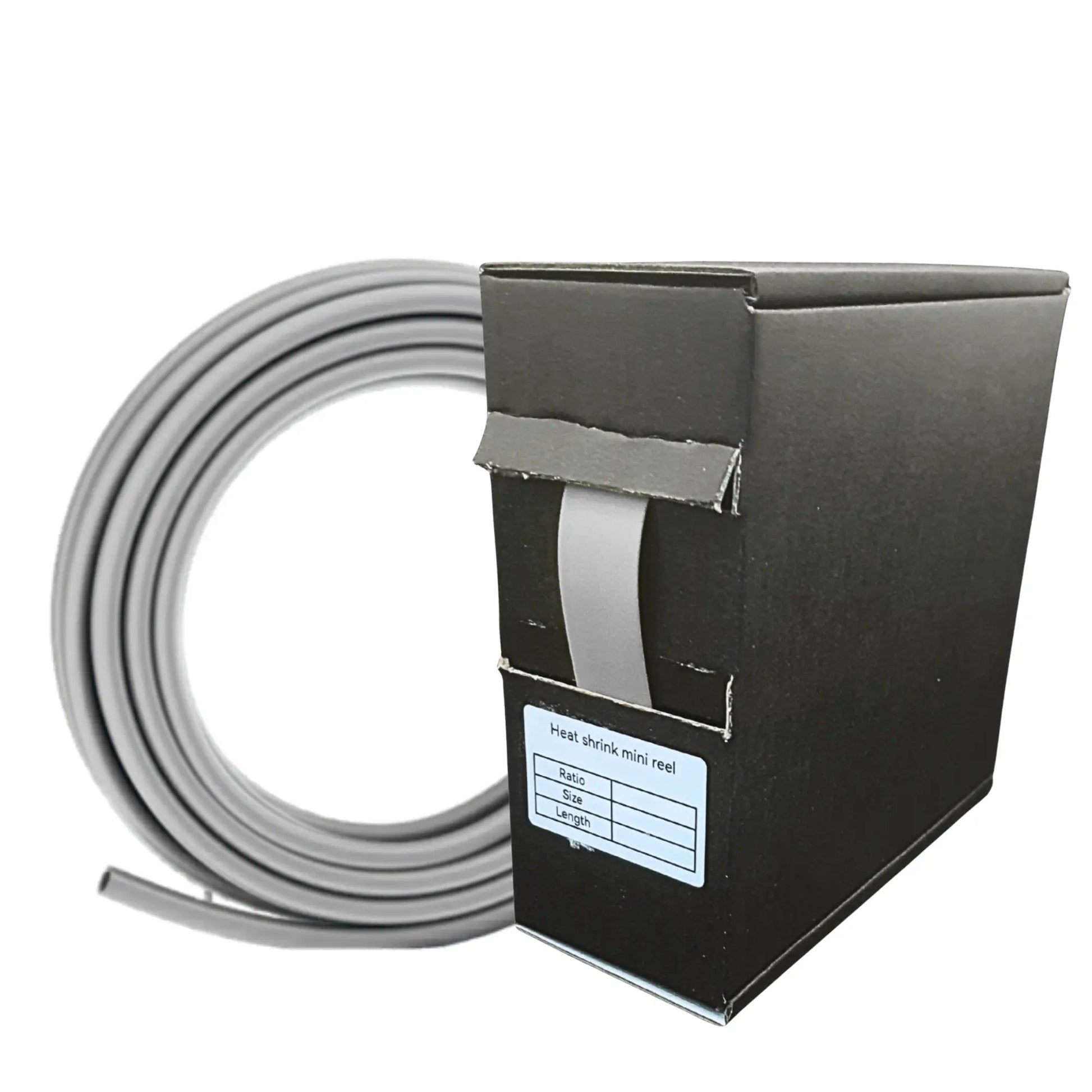

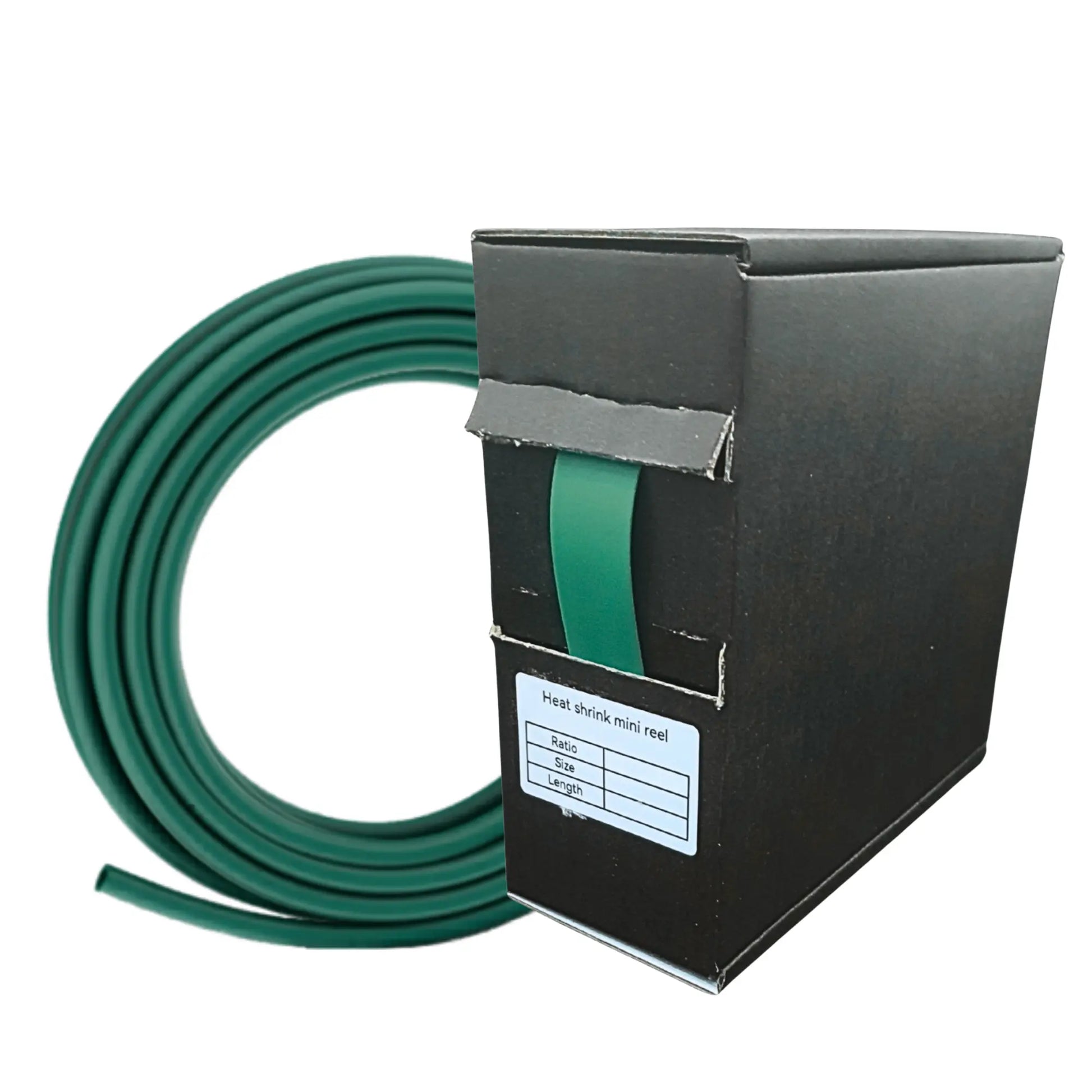

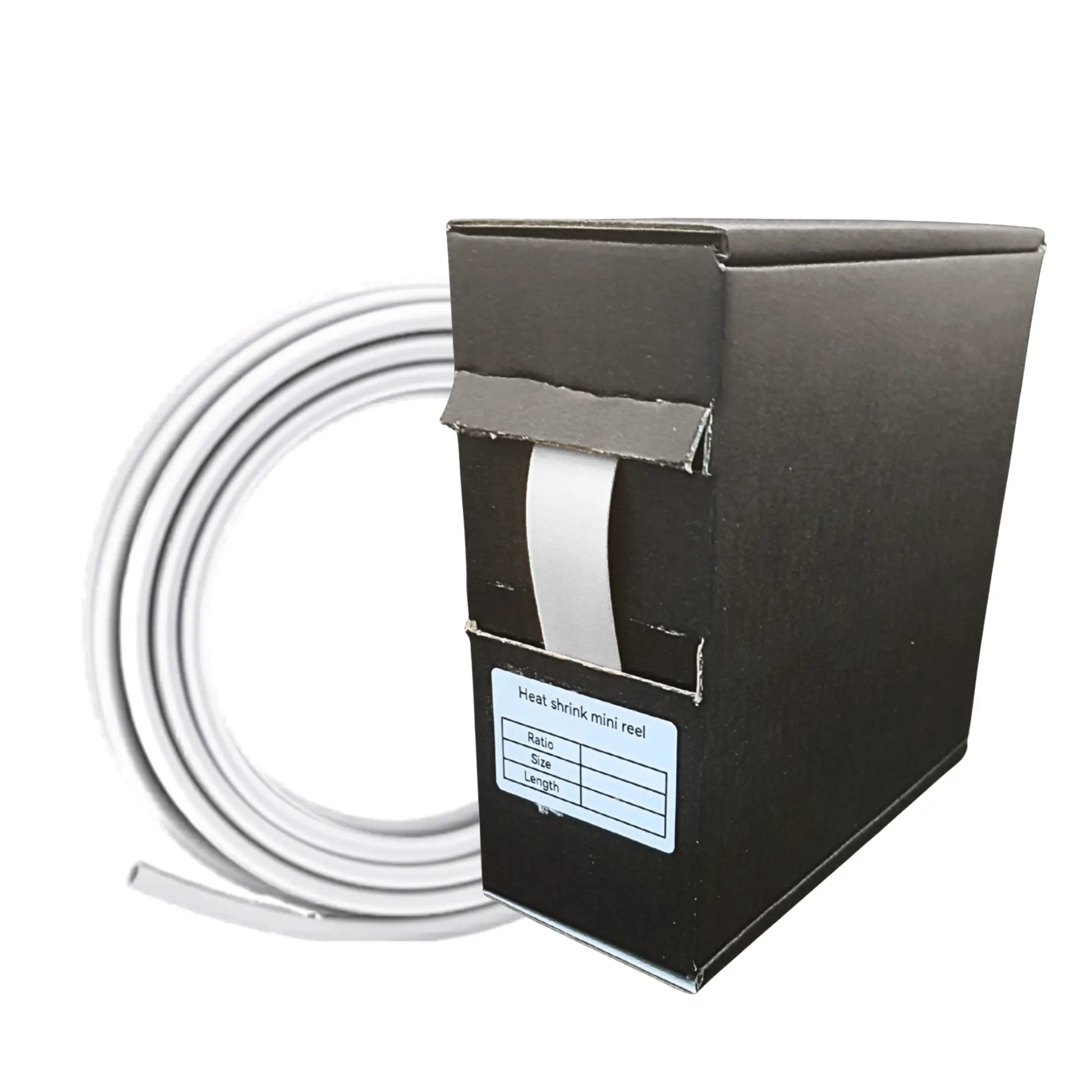

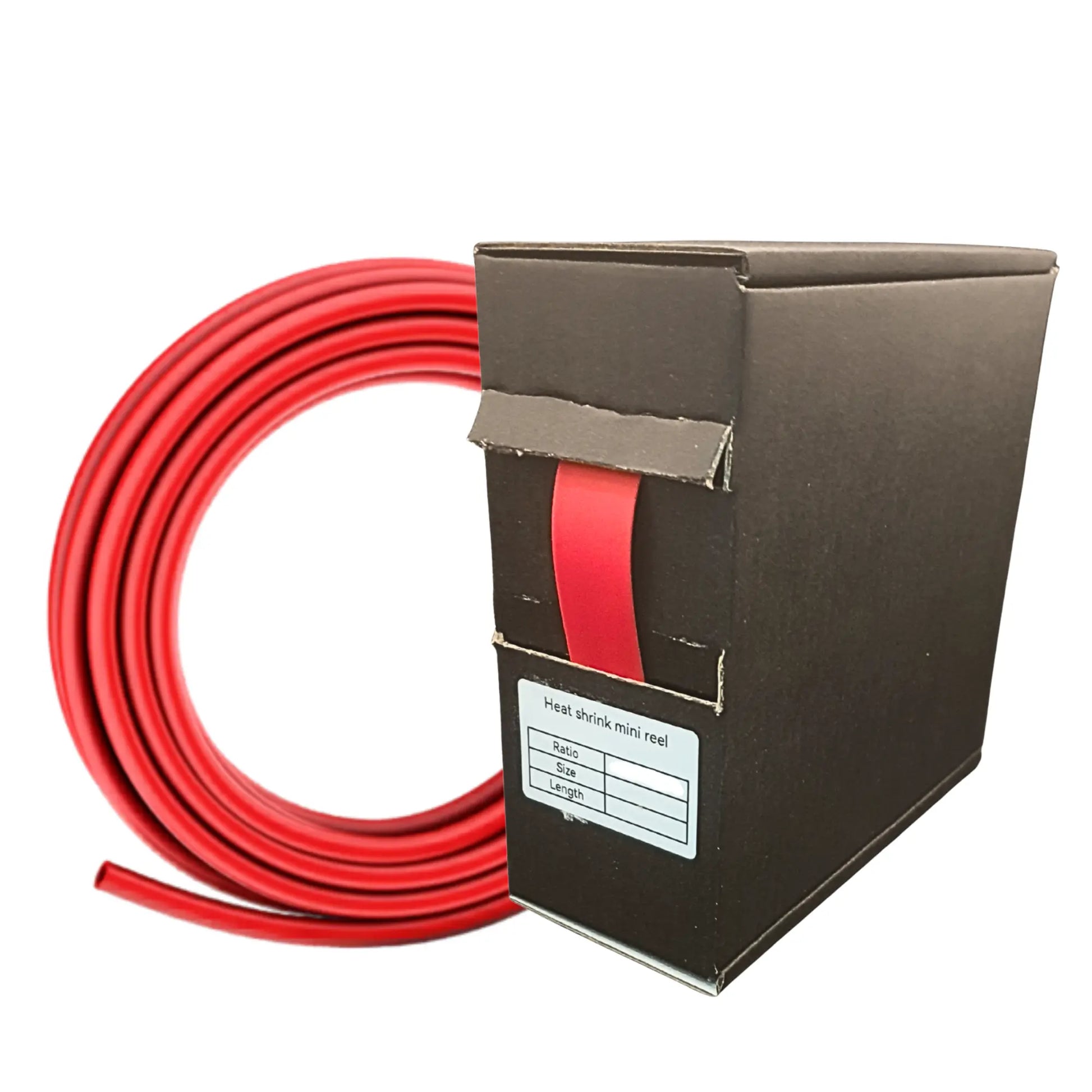

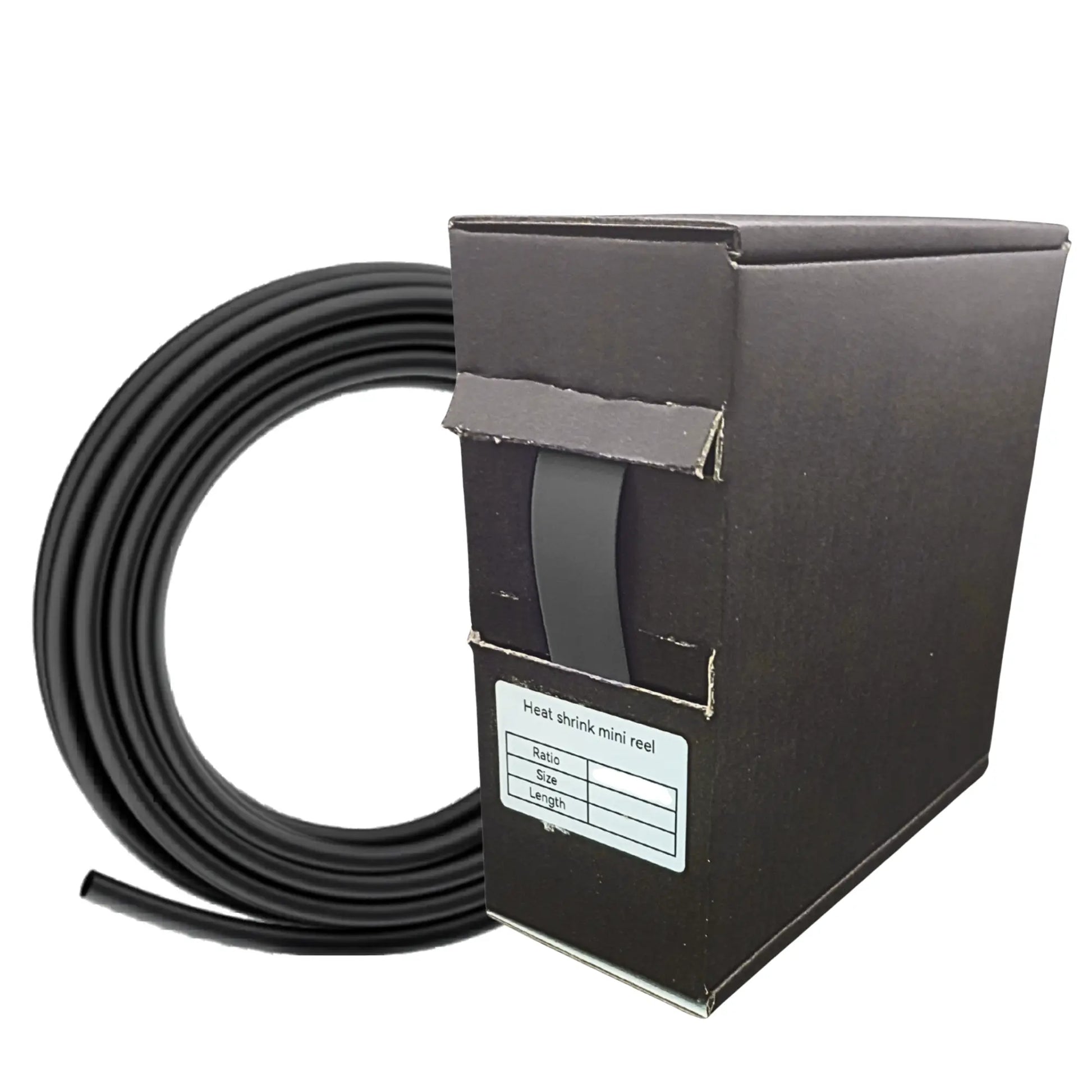

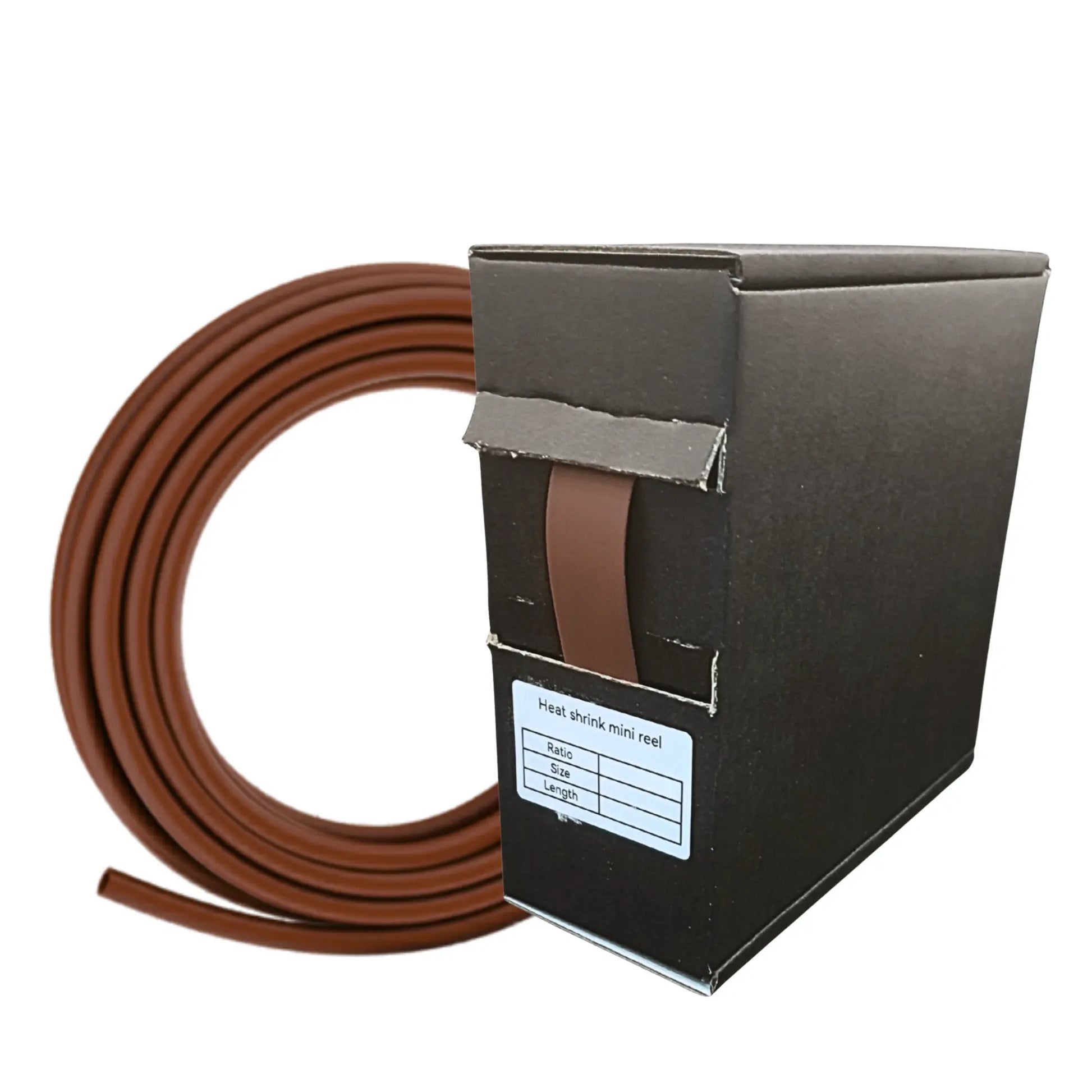

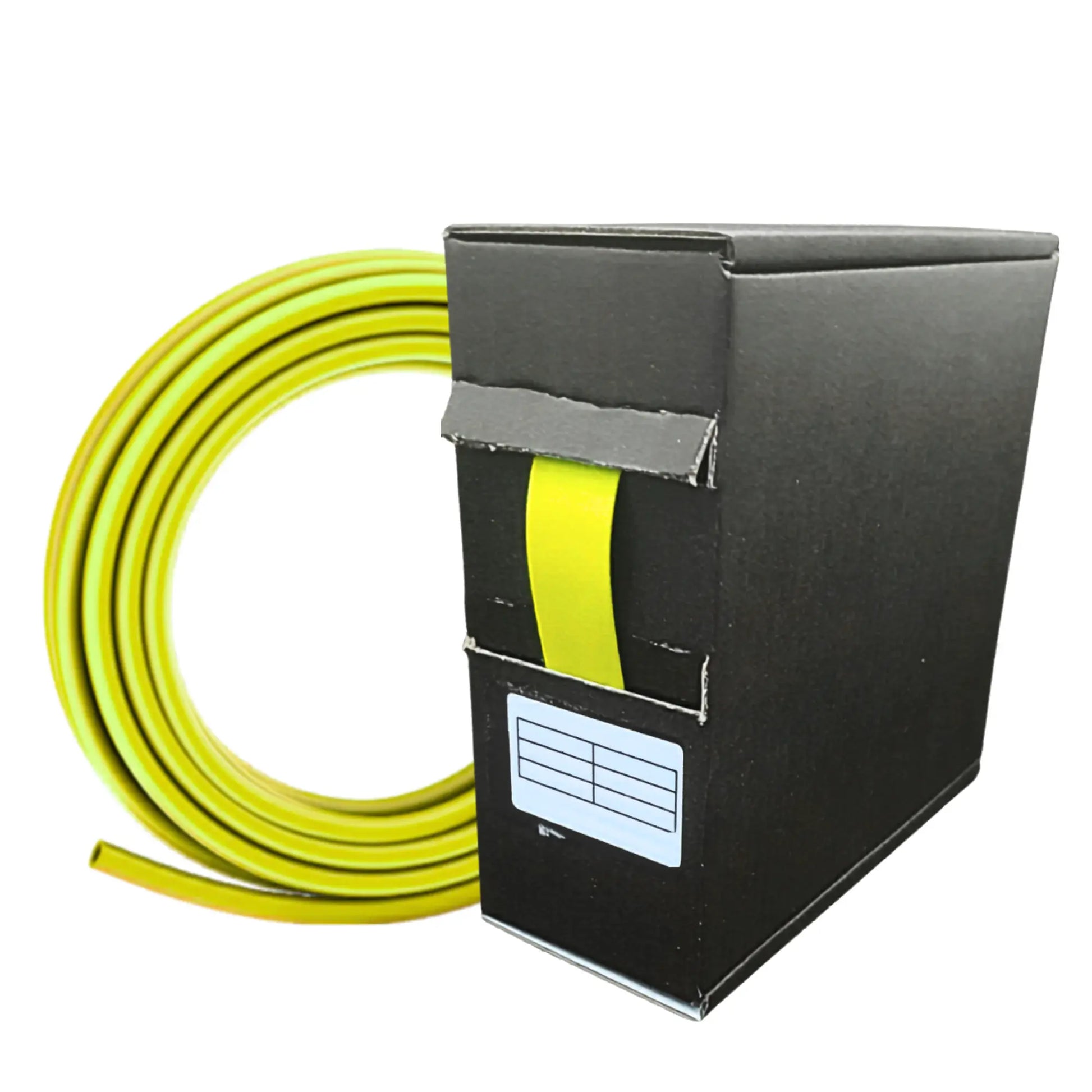

- Available in the following colours: Black, Blue, White, Brown, Yellow, Grey, Red, Green, Clear
- Please choose colour required when placing order
| Size Before Shrink | Size After Shrink | Reel Length | |
|---|---|---|---|
| 1.6mm | 1mm | 15m | |
| 2.4mm | 1.2mm | 13M | |
| 3.2mm | 1.6mm | 12M | |
| 4.8mm | 2.4mm | 11M | |
| 6.4mm | 3.2mm | 10M | |
| 9.5mm | 4.8mm | 7M | |
| 12.7mm | 6.4mm | 6M |
| 19mm | 9.5mm | 5M |
| 25mm | 12.5mm | 4M |
Technical Data:
Material: Polyolefin
Operating Range: -55 to +125 Degrees Celsius
Flammability: VW-1
UL, RoHS, Halogen Free
Description:
Heat Shrink Mini-Reel is a halogen-free, flexible, flame-retardant polyolefin shrinkable tubing. It is low smoke generating, abrasion resistant and in case of burning produces no dioxin. It has excellent electrical and physical properties, including advanced acid fastness and corrosion resistance. This heat shrink tubing is suitable for insulation use in automotive electronics, terminal lugs, small electrical parts and lead wires of toy motors and transformers etc.
What is 2:1 Heat Shrink Tubing Mini Reel?
The 2:1 heat shrink tubing mini reel is a versatile electrical insulation product designed to provide tight and secure protection for wires and cables. This tubing shrinks to half its original diameter when heated, ensuring a snug fit around various cable sizes. Supplied on a compact mini reel, it offers convenient handling and precise cutting for tidy cable management. Whether repairing wiring or insulating splices, this heat shrink tubing helps improve durability while protecting against abrasion, moisture and environmental damage. Its flexibility and heat resistance make it a practical choice for professionals and DIY users alike.
Durability and Performance Benefits
One of the key advantages of the 2:1 heat shrink tubing mini reel is its excellent durability. Made from high-quality polyolefin material, it offers strong resistance to heat, chemicals and physical wear. After shrinking, the tubing forms a tough protective barrier that helps safeguard electrical connections against corrosion and mechanical stress. The mini reel packaging allows for easy storage and quick access, making work efficient and organised. Its reliable performance supports the life of cables and helps improve safety in electrical systems by reducing the risk of damage to insulation.
Applications and Usage Tips
The 2:1 heat shrink tubing mini reel is ideal for numerous applications including wire bundling, insulation of splices and protection of terminals in automotive, marine and industrial settings. The mini reel format is perfect for technicians needing precise lengths without waste. To use, simply cut the desired tubing length, slide it over the wire or connection, then apply heat evenly using a heat gun or lighter until the tubing shrinks tightly. This helps create a secure seal that resists moisture and contaminants. Its adaptability and ease of use make it popular among electricians and hobbyists.
